Description
Monitor placement is as important as the model you choose when looking to provide ensure comfortable and productive use. Holding up to 32-inch monitors, our VESA-compatible D-Board Monitor Mount tilts, swivels, and pivots to get your displays in the optimal position for superior in-game performance and comfort. If you lack clearance for a swing monitor arm, or reluctant to drill into a wall the DEZCTOP monitor mount quickly and easily affixes to the D-Board to provide a secure mounting for one or more monitors.
D-Board Monitor Mount - M
Model Number
DA-DBMONT-BK1
EAN
4710578830225

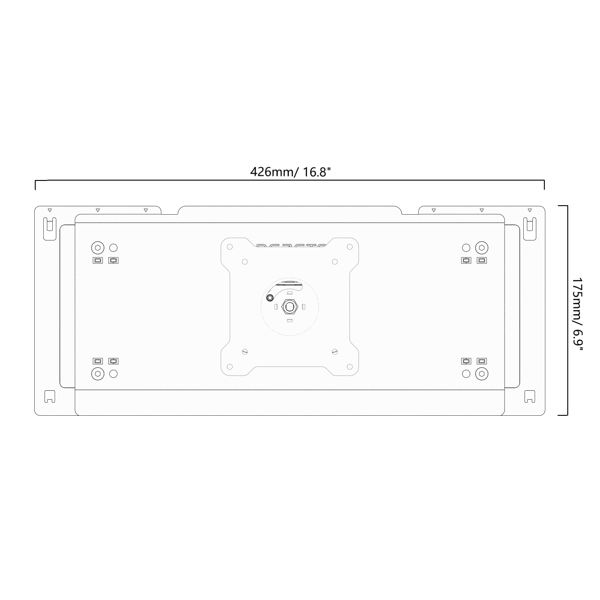

Dimensions (W x D x H)
15.7 x 2.9 x 6.9in (400 x 74 x 175mm), while mounting across two boards
16.8 x 2.9 x 6.9in (426 x 74 x 175 mm), while mounting on a single board
Screen Size
Up to 32”(over 1800R screen curvature is not applicable)
Weight Capacity
Within 15.4 lbs (7 kg)
Swivel (Left/Right)
20°
Tilt (Down)
15°
Pivot
90° (Counterclockwise)
Compatibility & Max. Load
VESA MIS-D: hole pattern 100 x 100, 75 x 75mm
D-Board Monitor Mount - L
Model Number
DA-DBMONTL-BK1
EAN
4710578830744

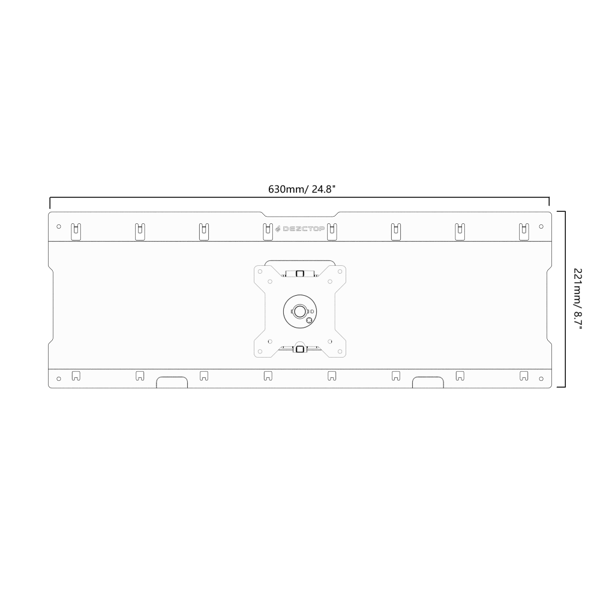

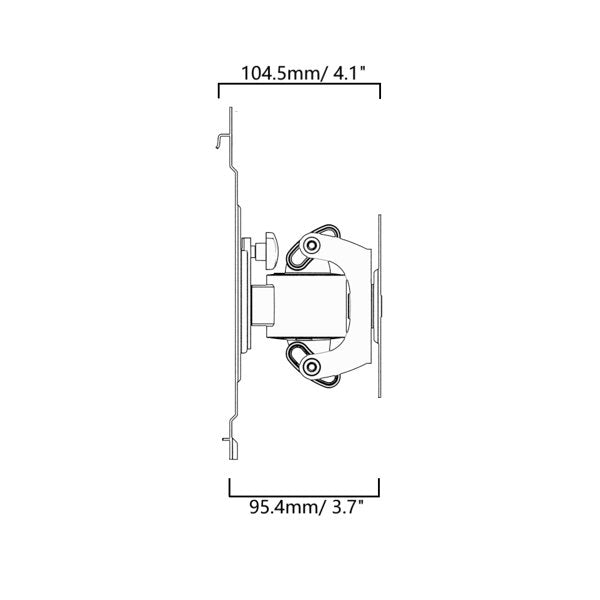

Dimensions (W x D x H)
24.8 x 4.1 x 8.7in (630 x 104.5 x 221mm)
Screen Size
Flat: up to 43
Curved: up to 49, 32:9 Ultrawide
Weight Capacity
Flat - 15 kg (33.1 lbs)
Curved - 14 kg (30.9 lbs)
1500R: 13 kg (28.7 lbs)
1000R: 12 kg (26.5 lbs)
Swivel (Left/Right)
20°
Tilt (Down)
± 15°
Pivot
90° (Clockwise)
Compatibility & Max. Load
VESA MIS-D: hole pattern 100 x 100, 75 x 75mm
