Description
Gleam your setup with some razzle-dazzle tailored to your personality and surrounding, even without an RGB capable motherboard. The control box synchronizes or separately engages two channels, varying the lighting and adding the right ambiance for you to game on. Also, determine the desired colors and effects by connecting the pack to the motherboard’s ARGB header. Eighty addressable LEDs offer generous illumination coverage stretching to almost 9ft, with available extension options.
Model Number
DA-RGBLKT-BK1
EAN
4710578830232
Material
Plastic, PCB, Magnet, Steel
Light Controls
- RF Remote
- Via MB's Addressable RGB LED Header
Light Effects
- RF Remote:
50 light effects across 6 modes including Static, Rainbow, Fading, Breathing, Stary Night, and Meteor.
2. Via MB’s Addressable RGB LED Header: Depends on MB’s light control software
Control Box

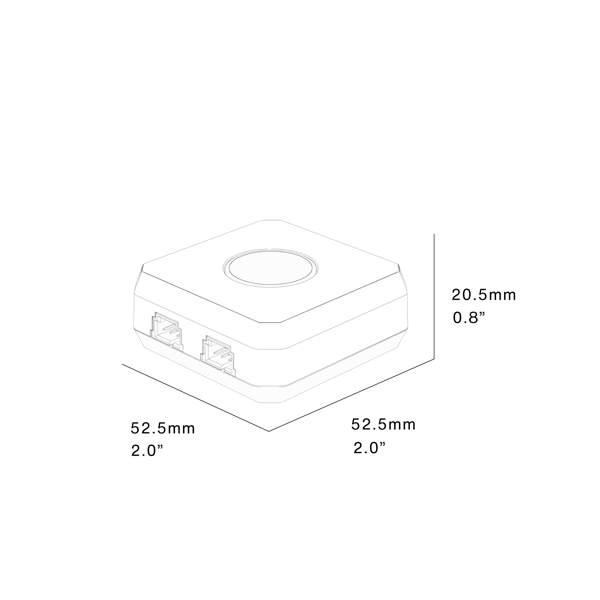

Dimensions (W x D x H)
2.1 x 2.1 x 0.8 in (52.5 x 52.5 x 20.5 mm)
Control's Switch
Switch between RF Remote (Blue Light) and MB’s ARGB LED Header (Red Light)
Control Channels
2 individuals
LED Strips' Compatibility
DEZCTOP LED Strips Only.
Each channel supports up to 6X LED strips (Up to 120 LEDs per channel)
Input Power
DC 5V connector
Input Signal
3-pin connector for connection with MB's ARGB LED Header (Via PCI-E Adapter)
Mounting
Magnets or 3M Dual Lock Adhesive Pad
LED Strips
Quantity
4
Type
5V Addressable RGB LED (Equivalent of WS2812B)
LEDs Per Strip
20
Magnets Per Strip
11

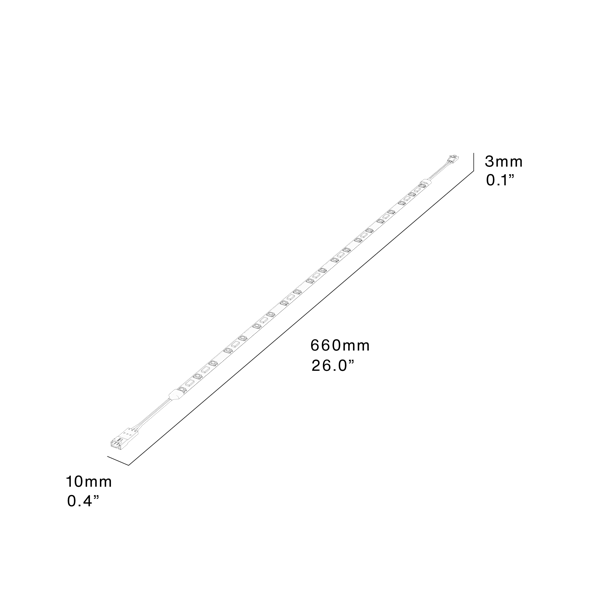

Dimensions (L x W x H)
660 x 100 x 3 mm, which covers:
(1) Effective range of 500mm (LED PCB)
(2) 2-end connection cable, 80mm each
Connectors
3-pin Male/Female Connectors on each end
Mounting
Magnets or 3M Tape
